Description

Overview

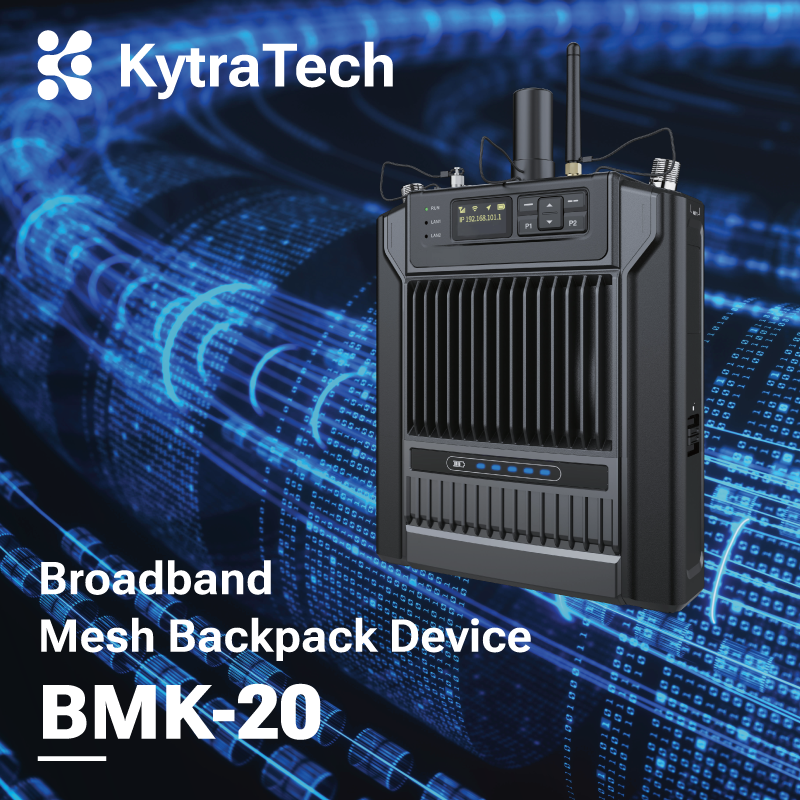

Broadband Mesh Backpack Device BMK-20 is the new-generation broadband wireless ad hoc network (WANET) device, which is designed to quickly establish a reliable network especially when public network is down. It provides wider communication coverage to ensure stable connectivity for public safety, major events, emergency response, field operation, and more.

What the BMK-20 does is to fight side by side with frontline personnel. Powered by the intelligent platform, the BMK-20 has an amazing networking capability from high throughput to stable transmission link, from relay to versatile network topologies. Moreover, the IP67-rated BMK-20 can survive any harsh environment, and the long-lasting battery keeps the network services always on.

Unprecedented usability is built in the BMK-20. The compact and lightweight design makes the BMK-20 easier to carry. The BMK-20 allows users to get information quickly through the OLED display, LED indicator, or beep alert. The voice group call services let users stay connected with each other on the scene for better collaboration during deployment. Plus, the BMK-20 is highly scalable from open APls to diverse interfaces.

Highlights

1. Groundbreaking

• With the software-defined radio (SDR) architecture and exclusive enhancement algorithm, the BMK-20 has a strong demodulation capability, high sensitivity, and stable transmission link.
• The throughput of single-hop network is up to 100 Mbps, and the throughput of 8-hop network is greater than 16 Mops. In clear line of sight, the single-hop network reaches up to 100 km theoretically.
• As the low power consumption platform and power-saving algorithm extend the battery life, it can power conventional up to 14

2. Stable

• Working in MIMO mode, Conventional mode, or Carrier Aggregation mode, the BMK-20 has the robust anti-interference capability to face various electromagnetic environments. So it can always perform well anywhere.
• The BMK-20 ensures the stability of network links, thanks to automatic frequency selection (AFS) and dynamic frequency hopping (DFH). So wireless network services are always on.

3. Expandable

• The BMK-20 provides open APIs to facilitate the development of third-party applications to meet the customer customized solutions.
• The BMK-20 provides a variety of interfaces to ensure greater scalability, such as USB port, Ethernet interface, HDMI, andWLAN/BT antenna connector.

4. Reliable

• Data security is in our DNA. The BMK-20 is extremely secure, thanks to the core chipset, authentication, software-hardware encryption, and whitelisting.
• IP67 rated, the BMK-20 can stand up t o water, dust, or other harsh environments.

5. Agile and efficient

• Based on the 4G LTE \ 5G NR technologies, up to 32 mesh nodes can be deployed to create a wide-coverage peer-to-peer network without a core node.
• The BMK-20 helps users identify the best deployment site by automatically detecting the signal strength and emitting a linkage alarm.
• The auto routing and manual routing enable the mesh nodes to be connected in the best way to create an ultra-strong network even in complex environments.

6. Easy to use

• The OLED display, LED indicator, beep alert, and functional keys make it easy for users to finish on-site configuration quickly and know its status intuitively and audibly.
• Made by state-of-the-art craftsmanship and of composite materials, the lightweight BMK-20 is per fect for carrying on the move or deployable on the vehicle or airplane quickly.
